C&C Widget Configuration

This document covers the configuration of two Instore checkout widgets that control the Click & Collect behavior based on product attributes: instore-cc-attribute-control, which hides the C&C option entirely for products with specific attributes, and instore-cc-control, which filters the list of available stores when C&C is selected. Both widgets are configured via Omnitron Widget Management and activated through Instore UI Settings.

Hiding C&C Option for Products with Specific Attributes

Overview

The Click & Collect (C&C) option displayed on the Instore checkout screen can be dynamically hidden based on specific attribute key and value pairs of the products. This feature works by enabling the relevant setting in UI Settings and configuring the instore-cc-attribute-control widget in Omnitron.

Configuration Steps

1. UI Settings Configuration

Navigate to UI Settings from Instore and enable the “Enables displaying dynamic contracts(privacy policy, terms of use, consent texts) on the customer profile page” setting.

2. Creating the Widget Schema

Go to Content Management > Widget Schema Management > New Widget Schema in Omnitron and create a new widget schema with the following details:

• Slug: instore-cc-attribute-control

• Schema (JSON):

{
    "cc_attribute_control": {
        "multi": true,
        "data_type": "nested",
        "label": "CC Attribute Control",
        "is_localizable": true,
        "key": "cc_attribute_control",
        "schema": {
            "attr_key": {
                "data_type": "text",
                "key": "attr_key",
                "label": "Attribute Key"
            },
            "attr_value": {
                "data_type": "text",
                "key": "attr_value",
                "label": "Attribute Value"
            }
        }
    }
}

3. Creating the Widget and Entering Values

Once the widget schema is created, navigate to Content Management > Widget Management > Add New Widget in Omnitron.

• Select the instore-cc-attribute-control widget created above from the Widget Type field.

• Enter the Attribute Key and Attribute Value pairs corresponding to the product attributes for which the C&C option should be hidden.

Attribute Key and Value Usage

The attr_key and attr_value fields determine which product attribute the C&C option will be hidden based on. During the checkout flow, the system checks the attributes of each product in the basket (basket.basketitem_set → product.attributes); if a match is found with the attr_key and attr_value pair entered in the widget, the C&C option is hidden.

Example usage:

• Attribute Key: filterable_color

• Attribute Value: Black

In this example, if the basket contains a product with the color Black, the C&C option will not be displayed on the checkout screen. To define multiple rules, additional rows can be added in the widget with different attr_key / attr_value combinations.

Store Filtering by Product Attribute in C&C

Overview

When the Click & Collect option is selected on the Instore checkout screen, the list of stores can be dynamically filtered based on the attribute values of the products in the basket. If any product in the basket has a specific attribute_key / attribute_value combination, only the stores mapped to that combination via store_name are displayed. This feature works by enabling the relevant setting in UI Settings and configuring the instore-cc-control widget in Omnitron.

This widget is different from the instore-cc-attribute-control widget. While instore-cc-attribute-control completely hides the C&C option for products with a specific attribute, instore-cc-control filters which stores are shown when C&C is selected, based on the attributes of the products in the basket.

Configuration

1. UI Settings Configuration

Navigate to the UI Settings screen in Instore and enable the relevant C&C control setting. Once enabled, the store filtering rules defined in the instore-cc-control widget are applied during the checkout flow.

2. Creating the Widget Schema

In Omnitron, go to Content Management > Widget Schema Management > New Widget Schema and create a new schema with the following details:

Slug: instore-cc-control

Schema (JSON):

{
  "instore_cc_store_control": {
    "key": "instore_cc_store_control",
    "label": "Click Collect Store Filtering",
    "multi": true,
    "data_type": "nested",
    "schema": {
      "store_name": {
        "key": "store_name",
        "label": "Store Name",
        "required": false,
        "data_type": "text"
      },
      "attribute_key": {
        "key": "attribute_key",
        "label": "Attribute Key",
        "required": false,
        "data_type": "text"
      },
      "attribute_value": {
        "key": "attribute_value",
        "label": "Attribute Value",
        "required": false,
        "data_type": "text"
      }
    }
  }
}

3. Creating the Widget and Entering Values

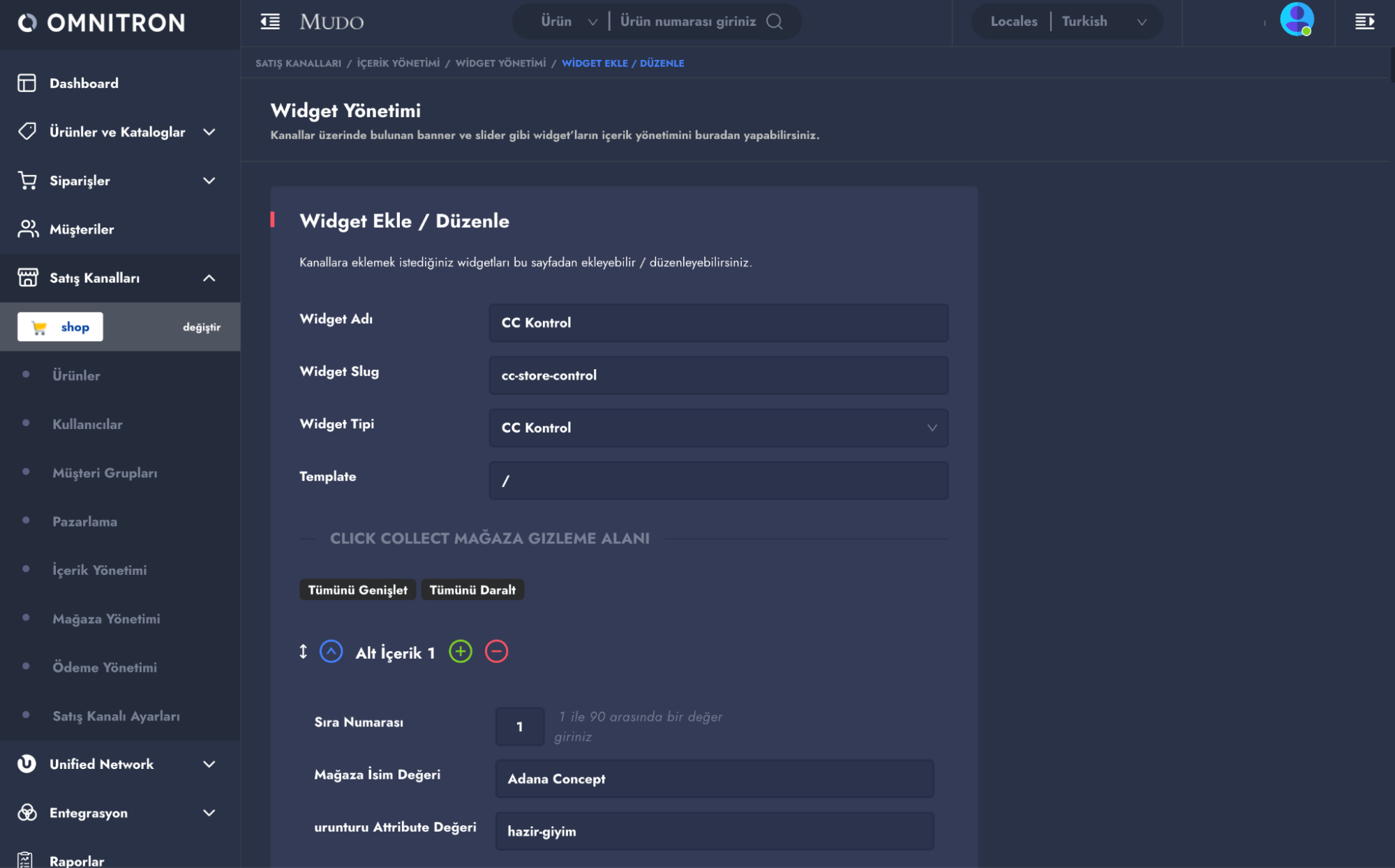

After the widget schema is created, go to Content Management > Widget Management > Add New Widget in Omnitron.

• Select the instore-cc-control widget from the Widget Type field.
• For each row, enter the Attribute Key, Attribute Value, and the Store Name that should be displayed when the match condition is met.
• Since multi: true is set, multiple rows can be added to define different attribute_key / attribute_value / store_name combinations.

Attribute Key, Value, and Store Name Usage

The attribute_key and attribute_value fields determine which product attribute the store filtering is based on when C&C is selected. The store_name field specifies the store that should be shown when that match condition is met.

During the checkout flow, when C&C is selected, the system checks the attributes of each product in the basket. If a product matches an attribute_key and attribute_value pair defined in the widget, the stores mapped to that row via store_name are filtered and displayed in the store list.

Example:

Attribute KeyAttribute ValueStore NamebrandRLNDubaidivisionMENDubai

In this example, if the basket contains a product with brand = RLN or division = MEN, the C&C store list on the checkout screen is filtered to show only the store mapped to the matching store_name (Dubai). Multiple rules can be defined by adding new rows to the widget.

API Endpoint and Example Response

Widget data is retrieved from the following endpoint:

GET /api/v1/widgets/instore-cc-control/

Example response:

{
  "name": "Instore CC Control",
  "slug": "instore-cc-control",
  "attributes": {
    "instore_cc_store_control": [
      {
        "value": {
          "store_name": "Dubai",
          "attribute_key": "brand",
          "attribute_value": "RLN"
        },
        "kwargs": {
          "value": {},
          "data_type": "nested"
        }
      },
      {
        "value": {
          "store_name": "Dubai",
          "attribute_key": "division",
          "attribute_value": "MEN"
        },
        "kwargs": {
          "value": {},
          "data_type": "nested"
        }
      }
    ]
  },
  "template": "/"
}

Changes made to the widget may take some time to be reflected in Instore due to caching. The updates will be visible once the cache has been cleared.
