# Shipping Management

This tutorial provides guidance on adding and editing shipping details within OMS. Shipping management is crucial for efficient order fulfillment.

## <mark style="color:red;">Step 1: Adding a New Shipping​</mark> <a href="#step-1-adding-a-new-shipping" id="step-1-adding-a-new-shipping"></a>

* From the OMS screens, navigate to the **Settings** tab in the OMS menu.
* Select **Shipping Management** on the next page.<br>

  <figure><img src="https://3333414532-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIbwGN7KwvYi0iLbjtnXz%2Fuploads%2FxgoKacogyW86btwDX42W%2Fimage.png?alt=media&#x26;token=e94fc2c1-54ea-42e5-977c-122ef001c8e8" alt=""><figcaption></figcaption></figure>

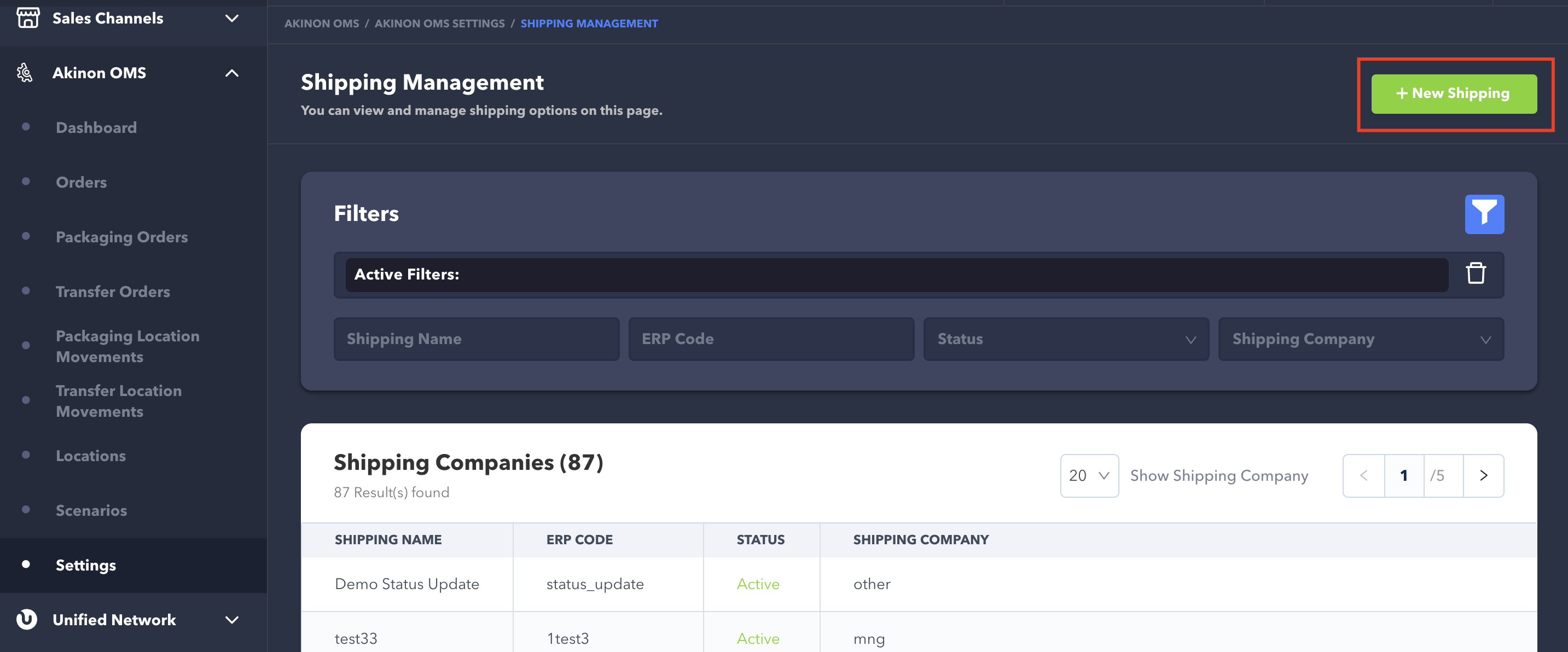

* Click the **+New Shipping** button.<br>

  <figure><img src="https://3333414532-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIbwGN7KwvYi0iLbjtnXz%2Fuploads%2Fa3btKe2gTG4OlWvxKzTw%2Fimage.png?alt=media&#x26;token=edb5e287-c0ba-40cd-836c-7ce89f41f310" alt=""><figcaption></figcaption></figure>

## <mark style="color:red;">Step 2: Editing an Existing Shipping​</mark> <a href="#step-2-editing-an-existing-shipping" id="step-2-editing-an-existing-shipping"></a>

* To edit an existing shipping record from the OMS screens, select the **Settings** tab under the OMS menu.
* Choose **Shipping Management** on the following page.
* Select the shipping name you wish to edit from the list, and proceed to the shipping detail.<br>

  <figure><img src="https://3333414532-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIbwGN7KwvYi0iLbjtnXz%2Fuploads%2F5CczlHrVjeX13icfmxPD%2Fimage.png?alt=media&#x26;token=e171d5d8-367e-45e2-8297-edc4383fe62b" alt=""><figcaption></figcaption></figure>

## <mark style="color:red;">Step 3: Completing Shipping Details​</mark> <a href="#step-3-completing-shipping-details" id="step-3-completing-shipping-details"></a>

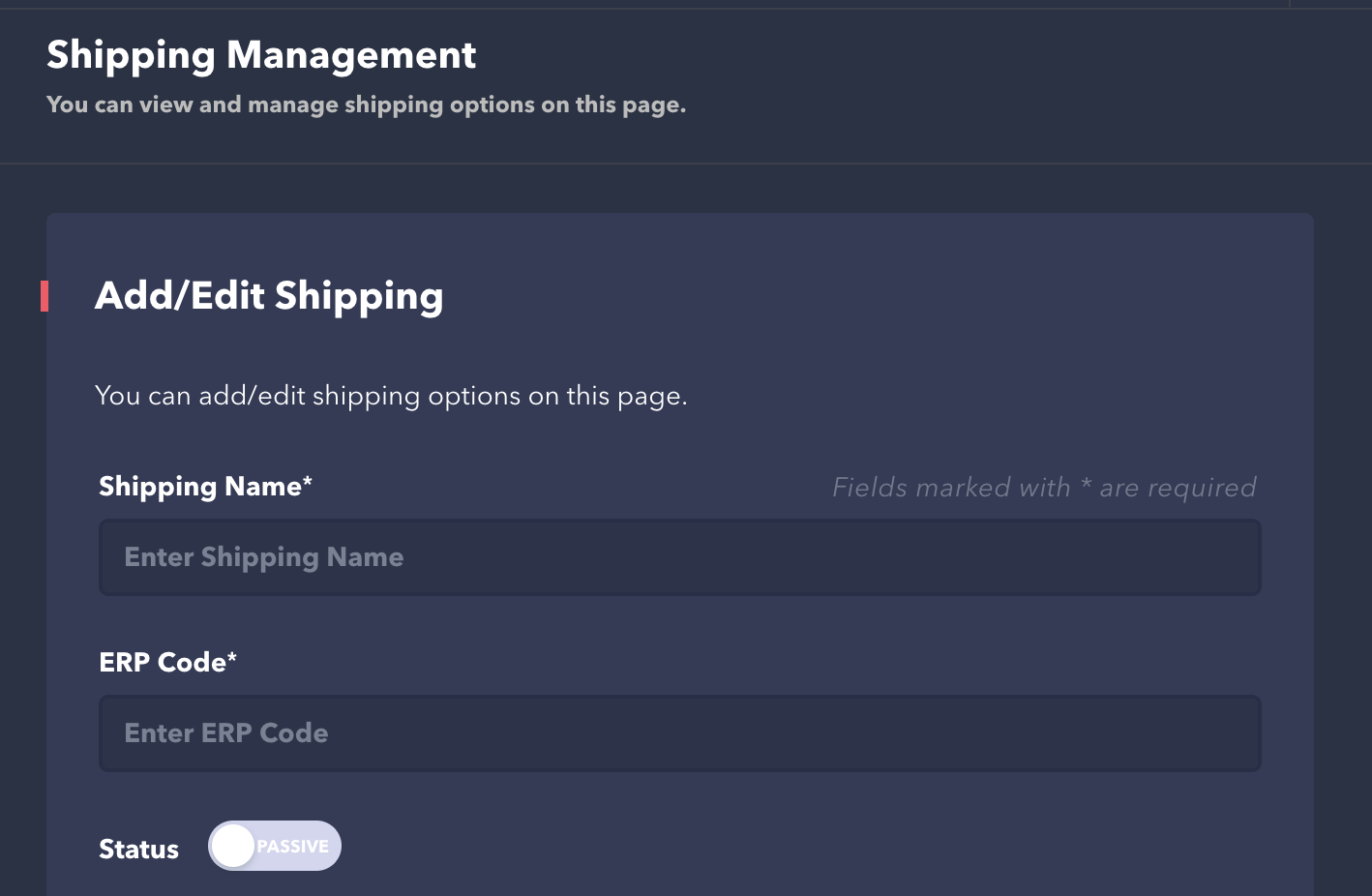

* To add or edit a shipping, fill in the following fields:
  * **Shipping Name**: Choose any name you prefer for the shipping.
  * **ERP Code**: Ensure this code matches the ERP code of the shipping company in Omnitron.
  * Set the **Status** to active if you intend to use this shipping company.<br>

    <figure><img src="https://3333414532-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIbwGN7KwvYi0iLbjtnXz%2Fuploads%2FIlGGrXk9G5Wdn7QfvTUS%2Fimage.png?alt=media&#x26;token=2834504a-1c27-4cde-8c1b-4da7c0884a29" alt="" width="375"><figcaption></figcaption></figure>

## <mark style="color:red;">Step 4: Cargo Management Preferences​</mark> <a href="#step-4-cargo-management-preferences" id="step-4-cargo-management-preferences"></a>

If desired, select the checkbox for **"I want my cargo to be managed by OMS."** This option allows you to:

* Create a packaging order for shipment.
* Query shipment information.
* Generate label information for each package.

If desired, customize the **Demo Client** field for non-integrated shipping companies or to exclude specific processes such as writing to shipment, querying, and label generation. Additional customizations can be applied in the **Klass** field.

## <mark style="color:red;">Step 5: Shipping Company Configuration​</mark> <a href="#step-5-shipping-company-configuration" id="step-5-shipping-company-configuration"></a>

* Choose the appropriate **Shipping Company** from the list defined within Omnitron. This selection may dynamically display additional fields based on your choice.<br>

  <figure><img src="https://3333414532-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIbwGN7KwvYi0iLbjtnXz%2Fuploads%2FFuWyW889mHuuVq9sfLzl%2Fimage.png?alt=media&#x26;token=24dcd4a3-c186-42a7-a43e-8eb1930f47bc" alt="" width="375"><figcaption></figcaption></figure>

## <mark style="color:red;">Step 6: Cargo Conditions (Optional)​</mark> <a href="#step-6-cargo-conditions-optional" id="step-6-cargo-conditions-optional"></a>

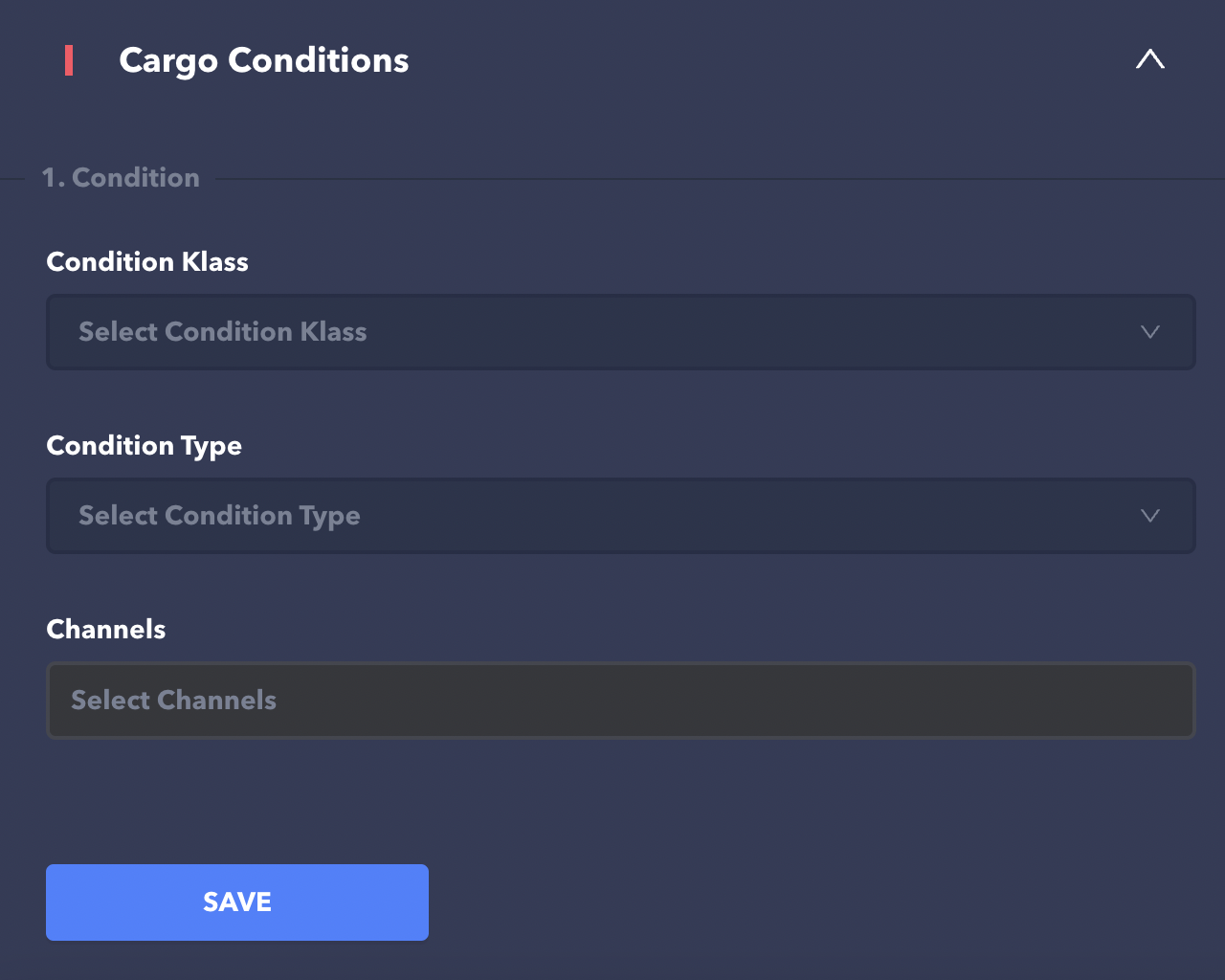

* Set **Cargo Conditions** for this shipping company by filling in the following fields:
  * Condition Klass
  * Condition Type
  * Channels
* Please note that some shipping companies may require extra information, such as Username, Password, Customer Code, Query Shipment URL, Create Shipment URL, Tracking URL, and Authentication URL.<br>

  <figure><img src="https://3333414532-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FIbwGN7KwvYi0iLbjtnXz%2Fuploads%2FB1vwMlp8msvhFugxqiFy%2Fimage.png?alt=media&#x26;token=58aa8d31-9497-49b4-bc1e-2e6e68b0fba4" alt="" width="375"><figcaption></figcaption></figure>
