# ZUBİZU Promotion Integration

This document provides a comprehensive guide for integrating the **Zubizu Loyalty Promotion** with an Omnitron-based e-commerce architecture. It outlines the steps required to configure the Zubizu promotion gateway, define the necessary backend components, set up frontend interactions, and perform testing using dedicated tools and services.

## Implementation Checklist

* [x] **Define ZUBİZU Promotion Gateway in Omnitron**
* [x] **Create Non-Sellable Miscellaneous Product for Discount Handling**
* [x] **Define ExternalCampaignCode-Based Discount Code in Omnitron**
* [x] **Implement Custom Basket Logic for ZUBİZU Code via Frontend**
* [x] **Validate ZUBİZU Codes Using Retailer API for Testing**

## <mark style="color:red;">Configuring the Zubizu Promotion Gateway in Omnitron</mark>

#### <mark style="color:red;">**Navigating to Loyalty Integration Settings**</mark>

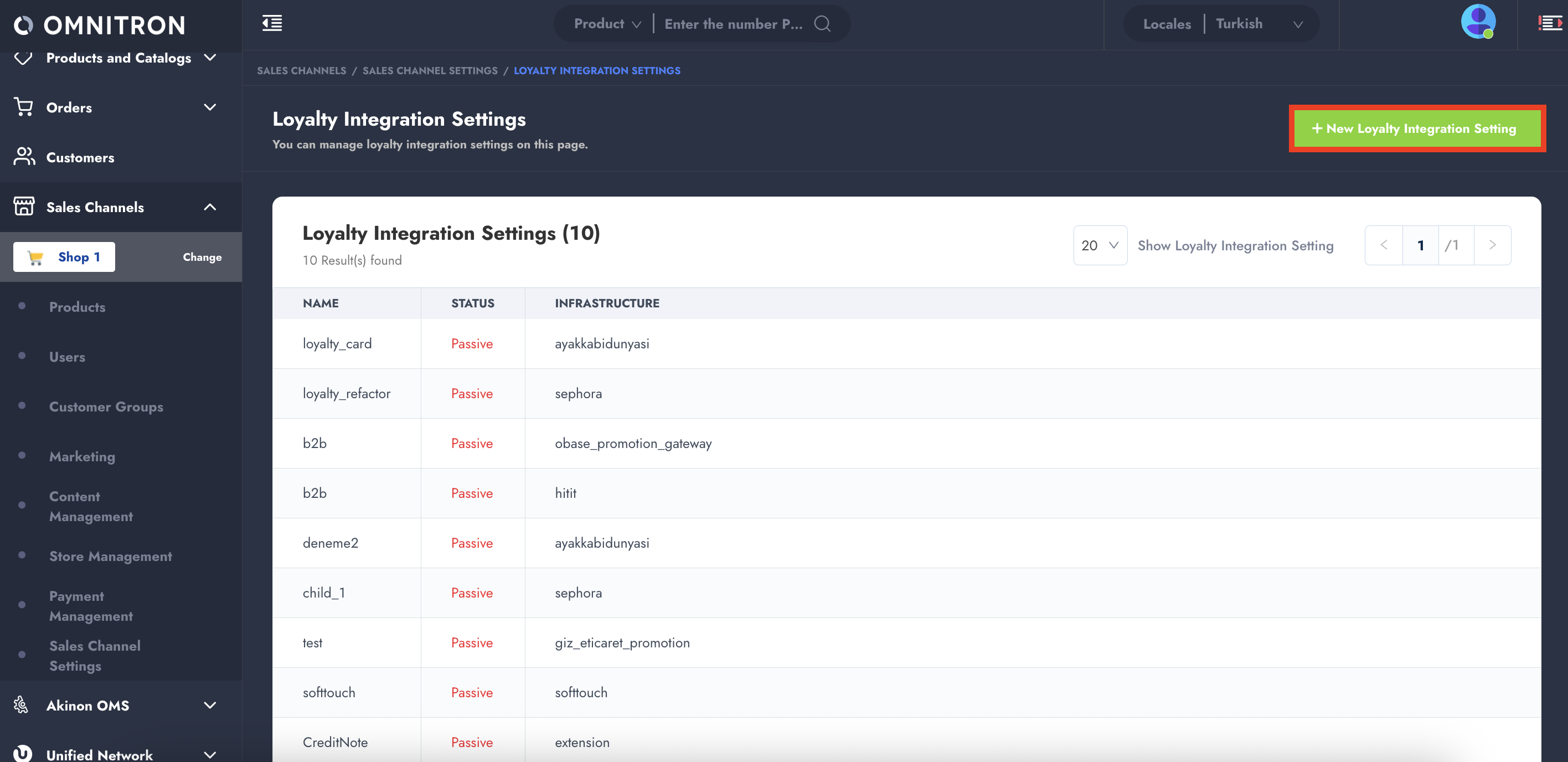

1. Log in to the **Omnitron**.
2. Navigate to: **Sales Channels → Sales Channel Settings → Loyalty Integration Settings**.
3. Click on the **“+ New Loyalty Integration Setting”** button located at the top-right corner.

<figure><img src="https://2911598027-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlQinVPnOffBiOp126ldR%2Fuploads%2Fgit-blob-a7091e627872805c4ce91031ad7a6f15a552ecd9%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

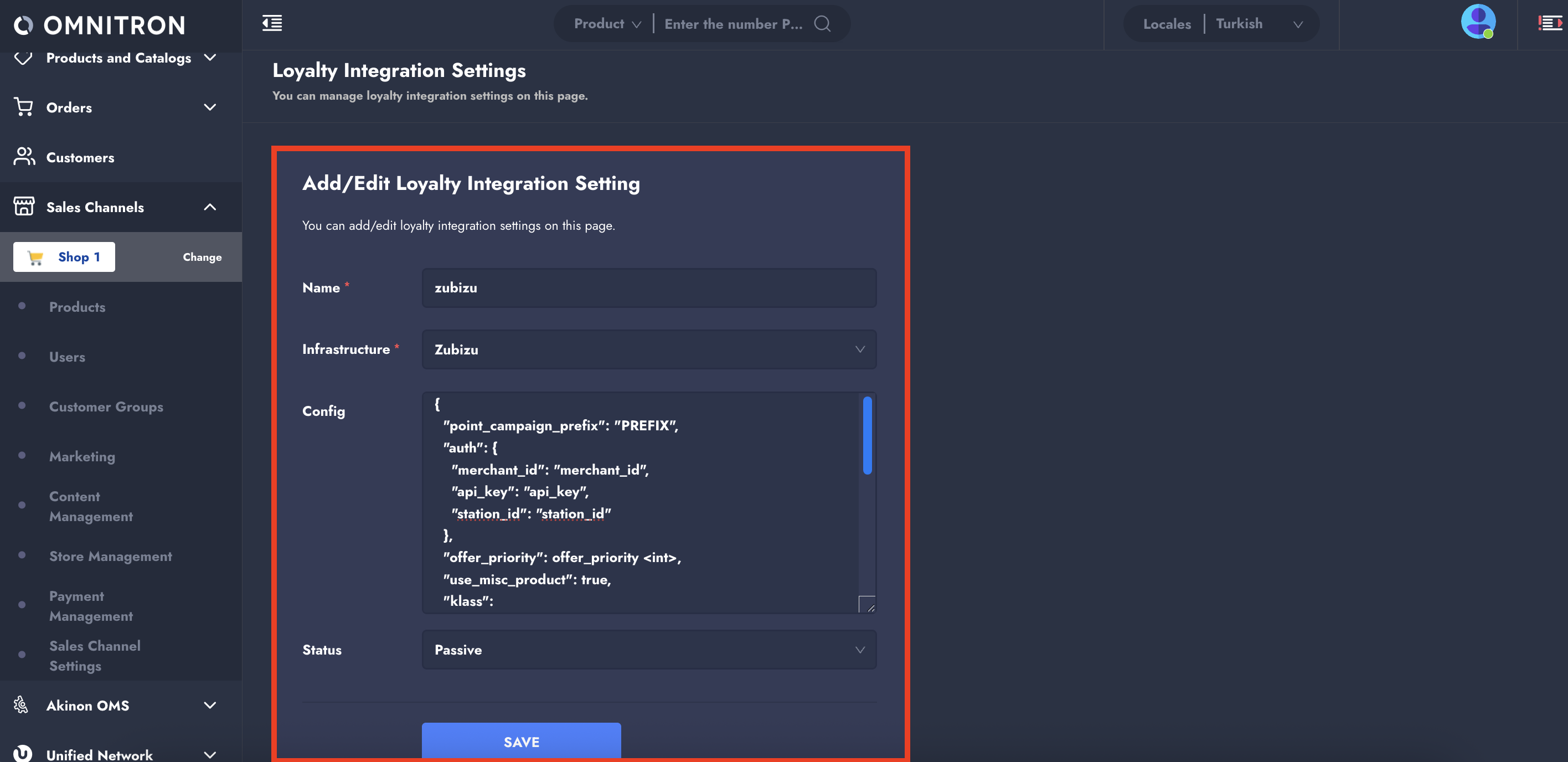

#### <mark style="color:red;">**Filling the Loyalty Integration Form**</mark>

Fill in the required fields as follows:

* **Name:** `zubizu` (this is case-sensitive)
* **Infrastructure:** Select `Zubizu`.
* **Status:** Initially set to `Passive`. It should only be activated after all integration flows have been tested end-to-end.
* **Integration Config:** Use the JSON configuration below:

```json
{
  "point_campaign_prefix": "PREFIX",
  "auth": {
    "merchant_id": "your_merchant_id",
    "api_key": "your_api_key",
    "station_id": "your_station_id"
  },
  "offer_priority": 100,
  "use_misc_product": true,
  "klass": "omnishop.promotions.backend.zubizu.service.ZubizuProvider",
  "urls": {
    "offers_url": "https://api.zubizu.com/api/Retailer/GetCustomerByCode",
    "cancel_url": "https://api.zubizu.com/api/Retailer/CancelByProduct",
    "pay_url": "https://api.zubizu.com/api/Retailer/RegisterPaidCheck"
  },
  "read_timeout": 5,
  "misc_product_sku": "ZUBIZU_MISCPROD_001"
}
```

<figure><img src="https://2911598027-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlQinVPnOffBiOp126ldR%2Fuploads%2Fgit-blob-ea40d0d102df261df4b2c21df1e3231fa9eab9b7%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
You must acquire the `merchant_id`, `api_key`, and `station_id` values directly from ZUBİZU. These credentials are required for authenticating all API calls to ZUBİZU's external services.
{% endhint %}

## <mark style="color:red;">Creating the Miscellaneous Product in Omnitron</mark>

The ZUBİZU integration requires the creation of a **non-sellable product** ([miscellaneous product](https://docs.akinon.com/technical-guides/omnitron/product-types#id-41-miscellaneous-product)) that will be added to the basket programmatically when a ZUBİZU code is applied.

#### <mark style="color:red;">**Product Creation**</mark>

1. Navigate to: **Products & Catalogs → Product Pool**
2. Click on **"+ Add New Product"**.

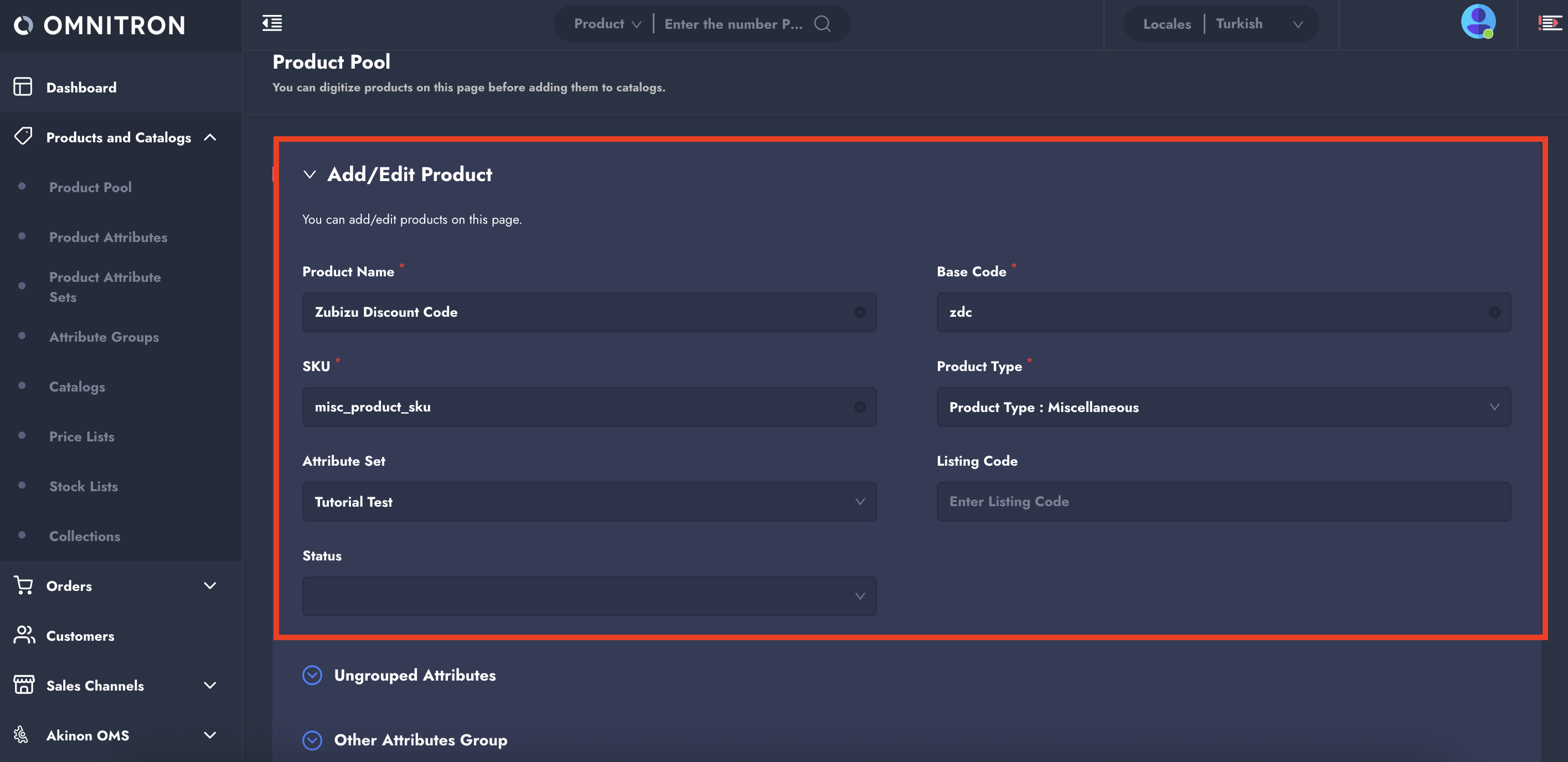

3. Create a product with the following key characteristics:
   * **SKU:** Must exactly match the value defined in the `misc_product_sku` field of the ZUBİZU promotion config.
   * **Attribute Set:** You may either define a custom attribute set for this product or reuse an existing one.

<figure><img src="https://2911598027-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlQinVPnOffBiOp126ldR%2Fuploads%2Fgit-blob-9705d181c4faf6c060f0adb4a9d619fde32f795c%2FScreenshot%202025-07-31%20at%2016.10.32.png?alt=media" alt=""><figcaption></figcaption></figure>

Once the product is created, you must assign **price and stock list** manually via Omnitron or through the ERP system:

* **Price:** Must be set to `0` (free item)
* **Stock:** Should be a high value, e.g., `999999`, since one unit will be added to the basket each time a valid ZUBİZU code is used.

#### <mark style="color:red;">**Assigning to Catalog and Category**</mark>

Although this product is not meant to be visible to customers, it must still be assigned to:

* At least one **catalog**, and
* A valid **category tree**, so it can be exported and synced to the storefront.

{% hint style="warning" %}
The product will **not appear in any listing or search pages**, due to its "not sellable" status. However, it will be accessible via its direct URL:

`{{shop_url}}/misc-product/{sku}`
{% endhint %}

## <mark style="color:red;">**Defining a Discount Code for ZUBİZU**</mark>

ZUBİZU campaigns are mapped via discount codes in Omnitron. These must match the `ExternalCampaignCode` values provided by ZUBİZU.

#### <mark style="color:red;">**Creating the Discount Code**</mark>

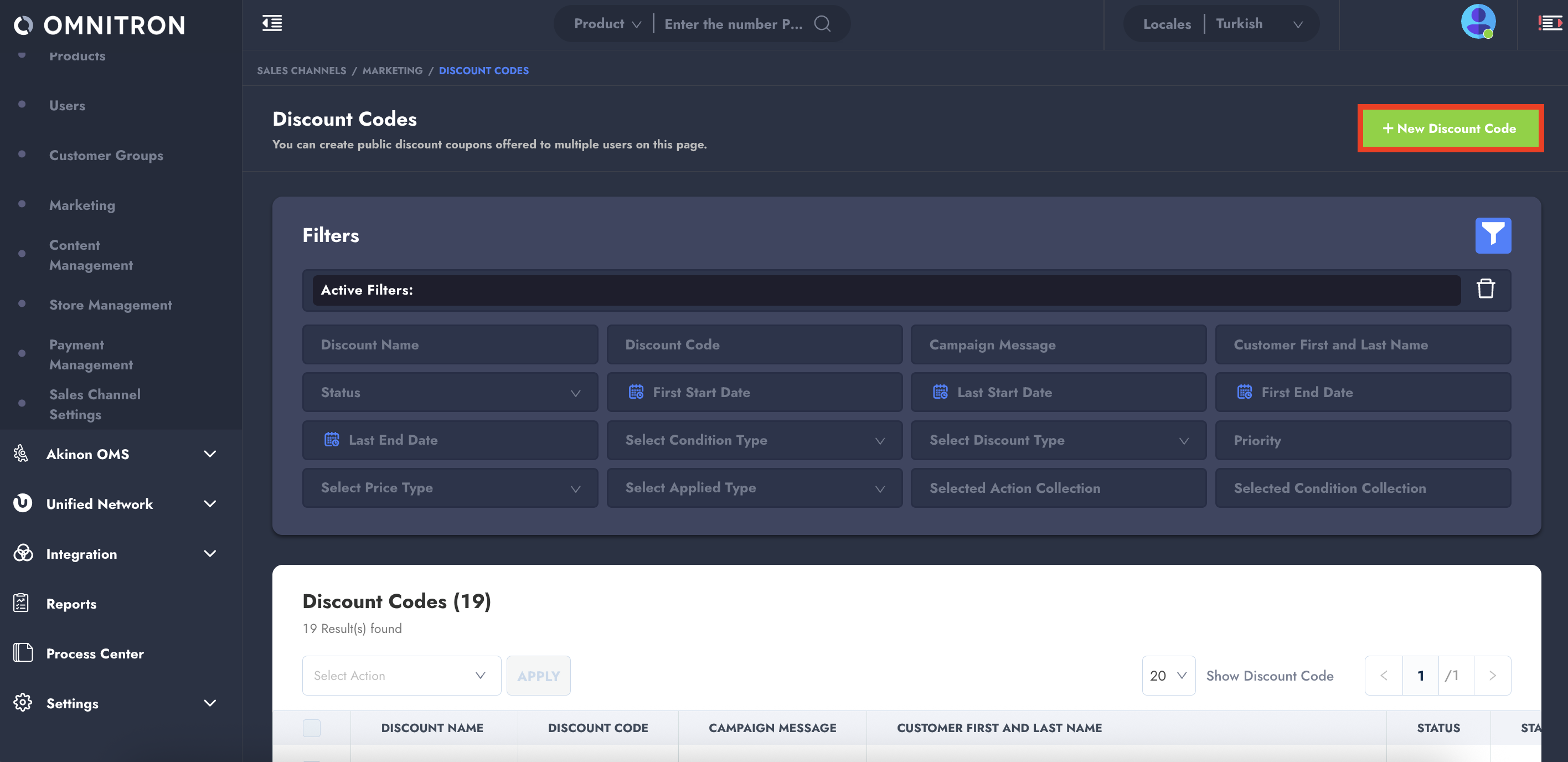

1. Go to: **Sales Channels → Marketing → Discount Codes**
2. Click **“+ New Discount Code”**.

   <figure><img src="https://2911598027-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlQinVPnOffBiOp126ldR%2Fuploads%2Fgit-blob-67bbb1e565a5bb1b8c8befb4b2f253ef797ec62b%2Fimage%20(149).png?alt=media" alt=""><figcaption></figcaption></figure>
3. In the new discount code creation screen:

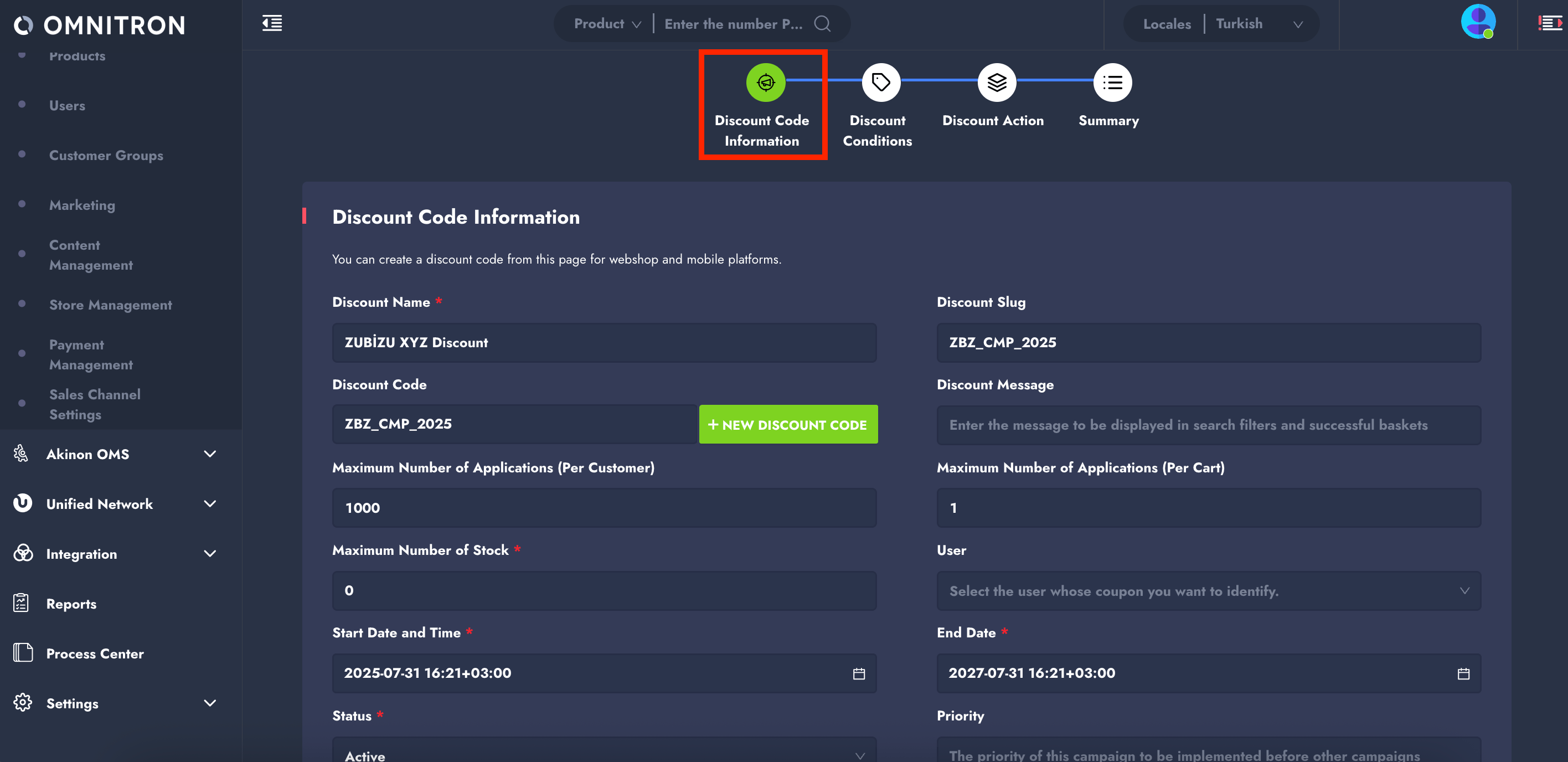

   * Set both the **Discount Code** and **Slug** to the `ExternalCampaignCode` provided by ZUBİZU (e.g., `ZBZ_CMP_2025`).

     <figure><img src="https://2911598027-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlQinVPnOffBiOp126ldR%2Fuploads%2Fgit-blob-8c9471119a4edafef34c761eb443a2862128a957%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

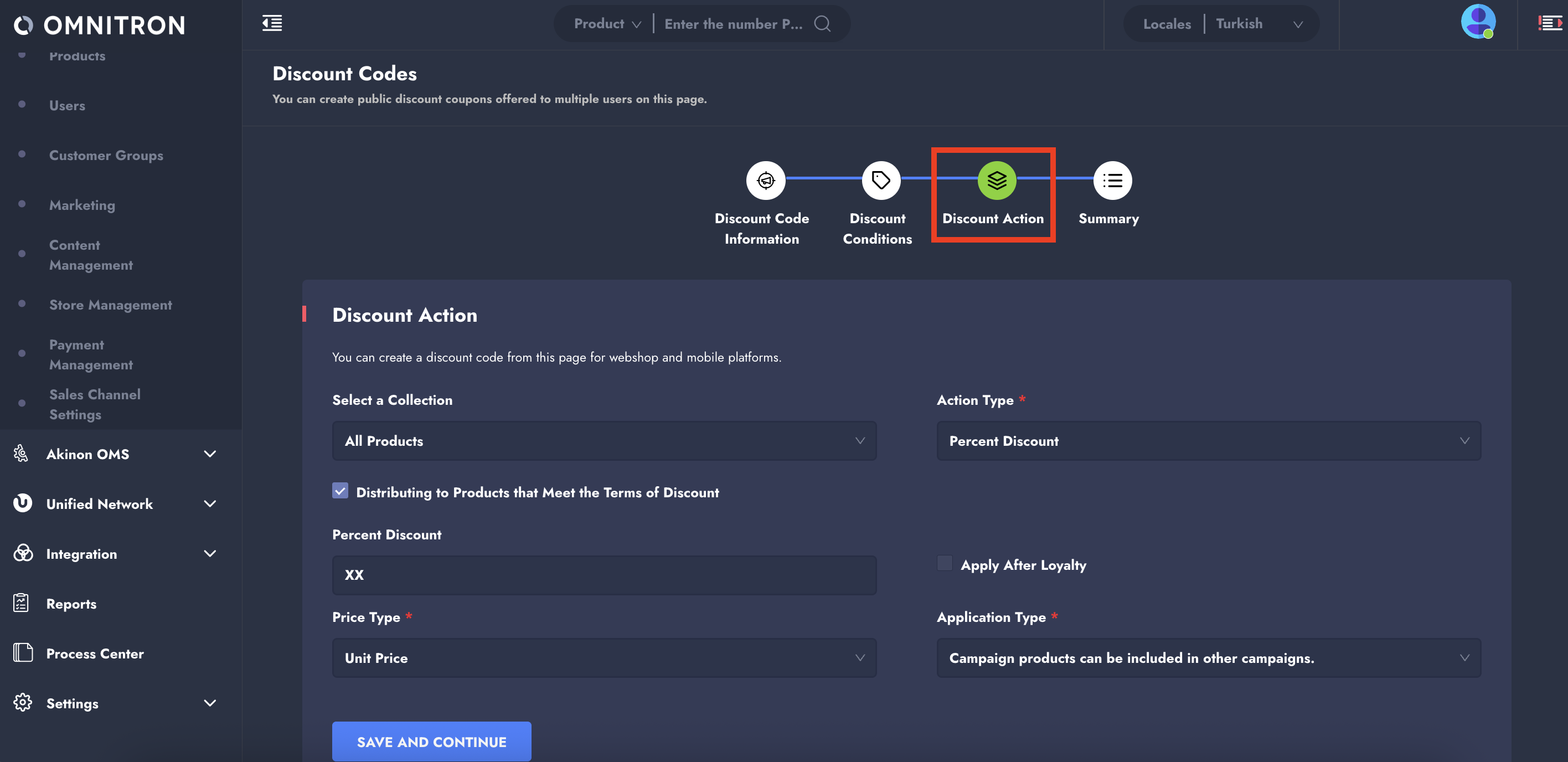

   * The **Action Type** must be set to `Percent Discount`.

     <figure><img src="https://2911598027-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlQinVPnOffBiOp126ldR%2Fuploads%2Fgit-blob-693c531e6f41836213a7bd868745ac57cceec8d2%2FScreenshot%202025-07-31%20at%2016.26.50.png?alt=media" alt=""><figcaption></figcaption></figure>
   * Configure other campaign parameters based on your business use case.

## <mark style="color:red;">**Frontend Integration**</mark>

ZUBİZU discount codes must **not** be processed using the standard discount code input flow. Instead, the integration relies on adding a predefined **miscellaneous product** to the basket, along with the ZUBİZU-specific code provided to the customer.

This process involves using the **primary key (PK)** of the miscellaneous product and sending the ZUBİZU code as part of the product attributes in the basket request payload.

#### <mark style="color:red;">**Adding the Misc Product with ZUBİZU Code**</mark>

To apply a ZUBİZU discount, the frontend should issue a **POST** request to the basket service with the following structure:

**Request URL:** `POST` `{{shop_url}}/baskets/basket/`

**Request Payload Example:**

```json
{
  "product": "6",
  "quantity": 1,
  "attributes": {
    "zubizu_type": "code",
    "zubizu_code": "5312168442"
  }
}
```

* `product`: PK of the miscellaneous product. In this example, it's `6`.
* `zubizu_code`: The discount code provided by ZUBİZU, which is unique per user.
* `zubizu_type`: Always set to `"code"`.

#### **Handling the Response**

Upon sending the POST request, evaluate the response:

* **HTTP 200 (OK):** The code is valid, the miscellaneous product has been added to the basket, and the discount has been successfully applied.
* **HTTP 400 (Bad Request):** The ZUBİZU code is invalid, expired, or previously used. In this case, the frontend should remove the product from the basket by setting its quantity to `0`.

#### <mark style="color:red;">**Removing the ZUBİZU Product**</mark>

Whether due to an invalid code or the user opting to remove the discount, the miscellaneous product can be removed from the basket using a **PUT** request:

**Request URL:** `PUT` `{{shop_url}}/baskets/basket/`

**Request Payload Example:**

```json
{
  "product": "6",
  "quantity": 0,
  "attributes": {
    "zubizu_type": "code",
    "zubizu_code": "5312168442"
  }
}
```

* This request clears the product from the basket and effectively cancels the applied ZUBİZU promotion.
* The same PUT request should also be triggered if a user changes their mind and decides not to use the ZUBİZU discount.

## <mark style="color:red;">**Testing with Helper Services**</mark>

ZUBİZU codes have a limited validity and **cannot be reused once validated**. To test the integration smoothly, request ZUBİZU to provide a **persistent test code** that can be queried multiple times.

To verify the **validity of a** ZUBİZU **code** and obtain the `ExternalCampaignCode`, you may use the following API:

#### **Validation Request Example:**

```bash
curl --location 'https://api.zubizu.com/api/Retailer/GetCustomerByCode?Code=<zubizu_code>' \
--header 'APIKey: <api_key>' \
--header 'MerchantId: <merchant_id>' \
--header 'StationId: <station_id>' \
--header 'Content-Type: application/json'
```
