# OTP (One Time Password) Process

The OTP (One Time Password) process secures Click & Collect orders by verifying that only the rightful customer can collect their package. This tutorial provides a detailed, step-by-step guide to managing the OTP process for Click & Collect orders within the Instore and OMS systems.

## <mark style="color:red;">Prerequisites</mark>​ <a href="#prerequisites" id="prerequisites"></a>

1. **Enable OTP Feature:**
   * Ensure that the OTP feature is enabled in your system. Check that the `IS_OTP_ENABLED` value in the `ApplicationSettings` is set to `true` for OTP functionality to be active. Please refer to the [Application Settings](https://apidocs.akinon.com/oms/application-settings-services) document.

## <mark style="color:red;">Click & Collect Process​</mark> <a href="#click--collect-process" id="click--collect-process"></a>

### <mark style="color:red;">Step 1: Verify Package Details​</mark> <a href="#step-1-verify-package-details" id="step-1-verify-package-details"></a>

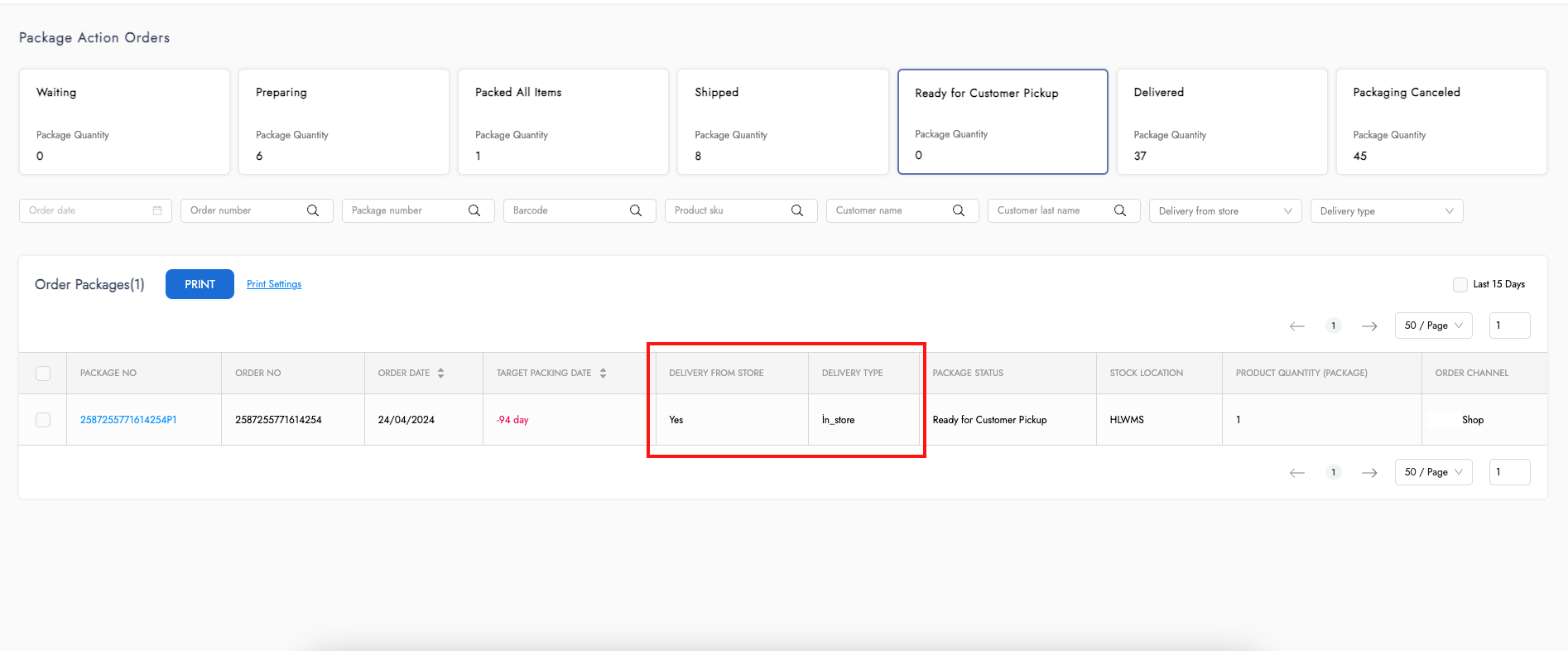

1. **Confirm Order Type:**
   * Access the package table and verify the package’s details.
   * Check the **Delivery From Store** column. It should be marked as **Yes**.
   * Check the **Delivery Type** column. It should be set to **In\_store**.

     <figure><img src="/files/6ZPwXUX46oAXVdpTjPtw" alt=""><figcaption></figcaption></figure>
2. **Package Status:**
   * Ensure that the package status is **Ready For Customer**.

### <mark style="color:red;">Step 2: Initiate Package Collection​</mark> <a href="#step-2-initiate-package-collection" id="step-2-initiate-package-collection"></a>

1. **Locate the Package:**
   * The store employee should find the package with the status **Ready For Customer** in the system.

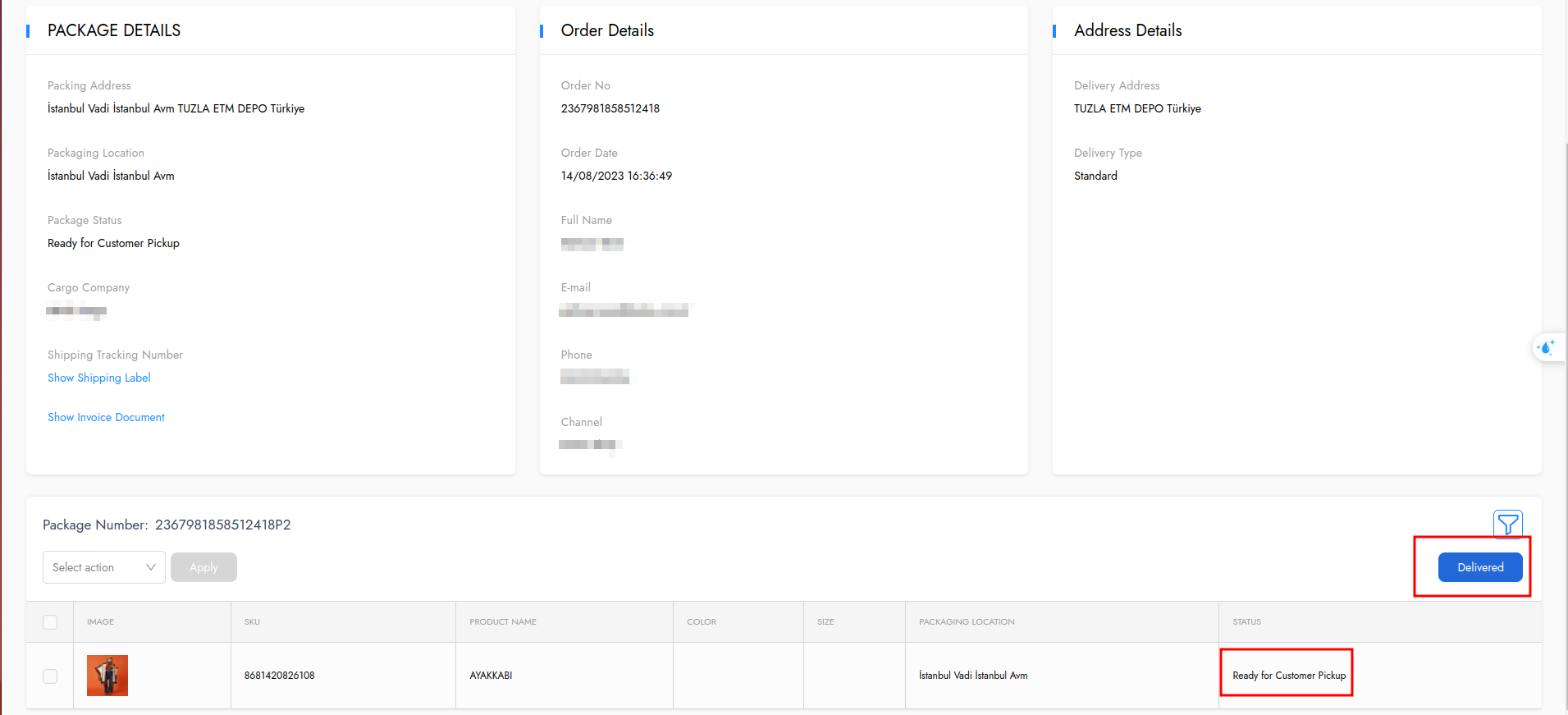

2. **Click & Collect Pack Item Button:**
   * To deliver the package to the customer; begin the verification process with the "Delivered" button for the package in the "Ready for Customer Pickup" status.

### <mark style="color:red;">Step 3: OTP Verification​</mark> <a href="#step-3-otp-verification" id="step-3-otp-verification"></a>

1. **Check OTP Feature Status:**
   * Determine if the `is_enabled_otp` setting is active.
   * If `is_enabled_otp` is active:

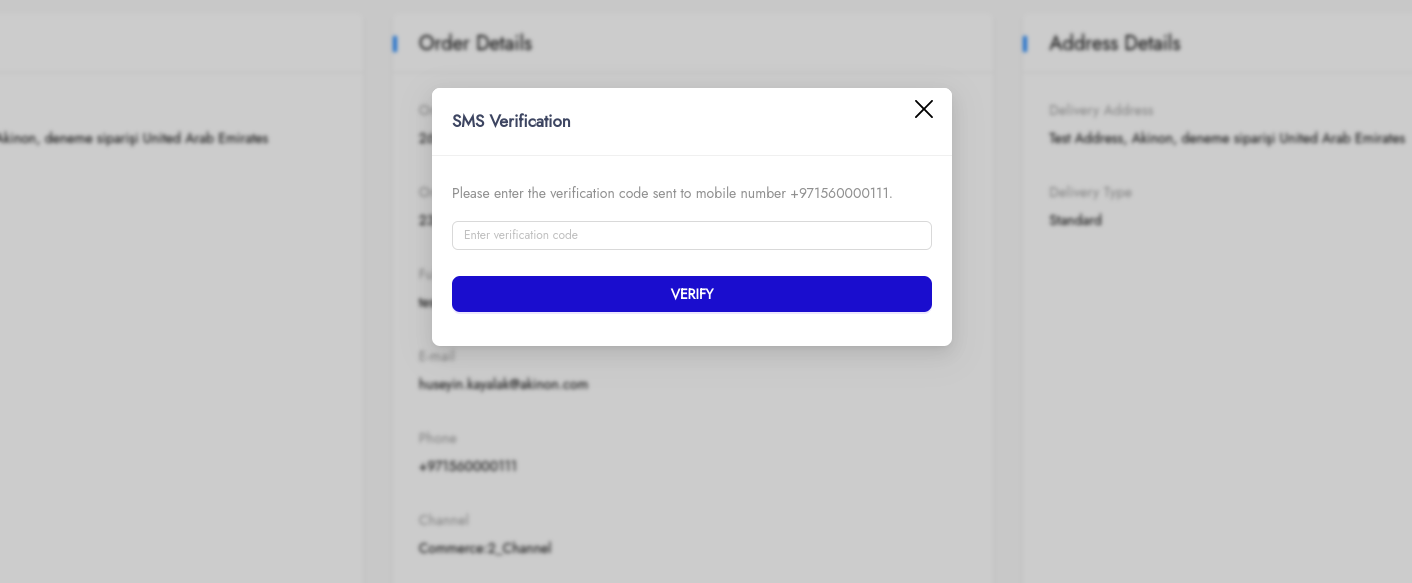

     1. The **SelfServisPackageDelivery** command will trigger a modal window.
     2. Enter the SMS verification code received from the customer into this modal for validation.

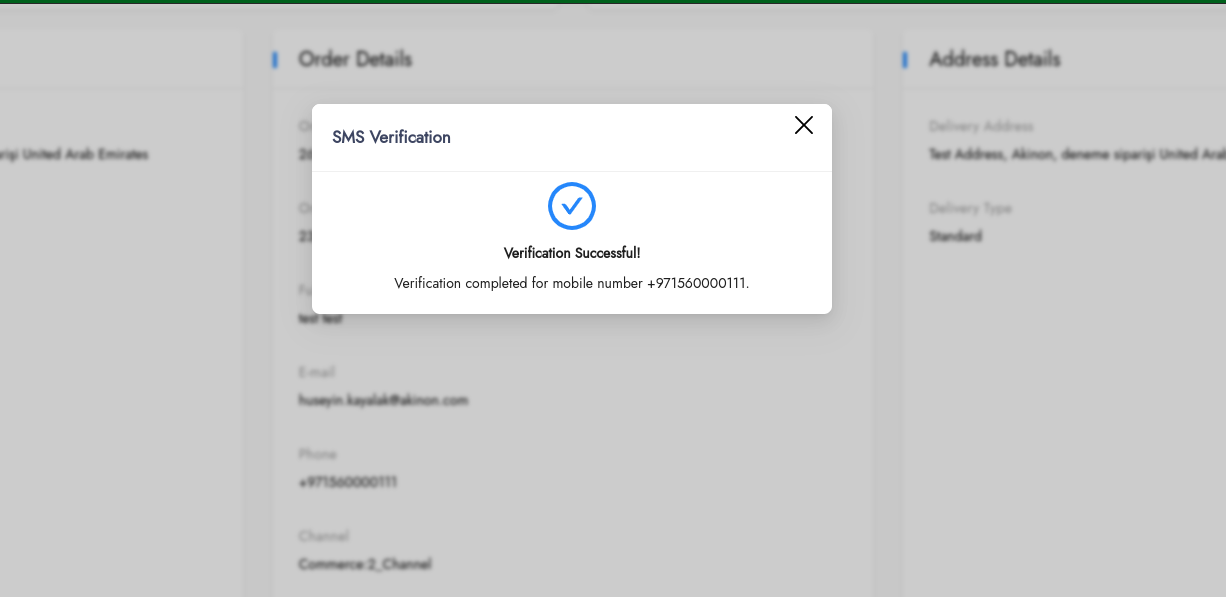

     3. **After successful verification:**
        * A success message will be displayed on the screen.
        * The package status will be automatically updated to **Delivered**.
   * If `is_enabled_otp` is not active:
     1. The **SelfServisPackageDelivery** command will execute without sms verification code.
     2. The package status will be updated to **Delivered** without requiring a verification code.

### <mark style="color:red;">Step 4: Manage Click & Collect Orders in Omnitron​</mark> <a href="#step-4-manage-click--collect-orders-in-omnitron" id="step-4-manage-click--collect-orders-in-omnitron"></a>

1. **Order Creation:**
   * Ensure that a Click & Collect order is created in the Omnitron application.
2. **Package Management:**
   * A package is generated in the stock location of the order.
   * Initially, the package status is set to **Waiting**.

{% hint style="info" %}
If you encounter an error with the OTP code, refer to the Error Handling section for information.
{% endhint %}

## <mark style="color:red;">Essential Package Statuses and Settings for Instore​</mark> <a href="#essential-package-statuses-and-settings-for-instore" id="essential-package-statuses-and-settings-for-instore"></a>

To move the package through various states, execute the following commands:

### <mark style="color:red;">1. Complete Packaging Without Shipment​</mark> <a href="#id-1-complete-packaging-without-shipment" id="id-1-complete-packaging-without-shipment"></a>

* **Command Name:** Complete Packaging Without Shipment
* **Source State:** Waiting
* **Destination State:** Packed All Items
* **Command Code:** `COMPLETE_PACKAGING_WITHOUT_SHIPMENT`
* **Visibility:** OMS WEB, INSTORE
* **Configuration:** {}

**Procedure:**

* Execute this command to change the package status from **Waiting** to **Packed All Items**.

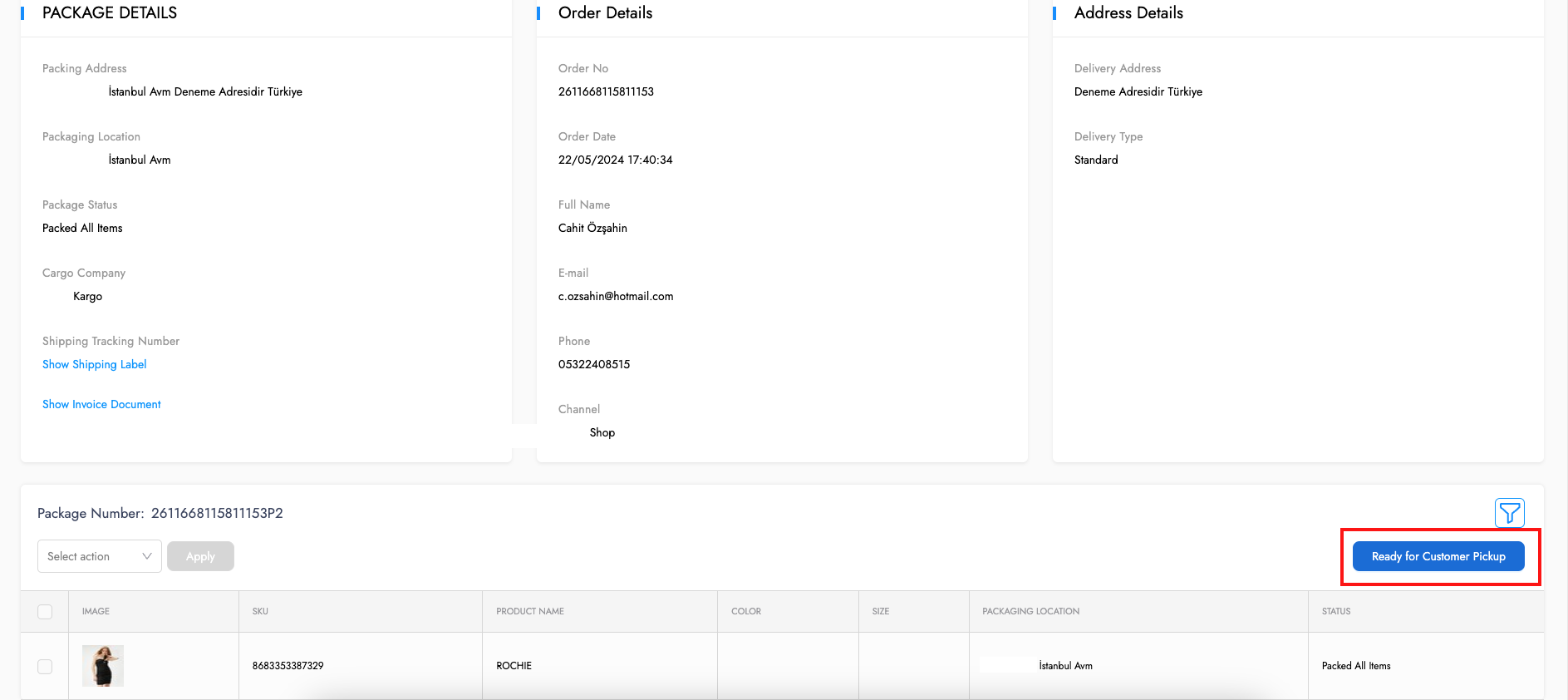

### <mark style="color:red;">2. Ready For Customer Pickup​</mark> <a href="#id-2-ready-for-customer-pickup" id="id-2-ready-for-customer-pickup"></a>

* **Command Name:** Ready For Customer Pickup
* **Source State:** Packed All Items
* **Destination State:** Ready for Customer Pickup
* **Command Code:** `READY_FOR_PICKUP`
* **Visibility:** OMS WEB, INSTORE
* **Configuration:** {}

**Procedure:**

* Execute this command to generate an OTP for the package. The OTP is sent to the Extension application via the `PackageReadyForCustomerPickupWhispererEvent` event.
* The OTP is then included in the SMS sent to the customer.
* The package status will be updated to **Ready for Customer Pickup**.\\

  <figure><img src="/files/C4ShENSoJXZWnoeGLDI7" alt=""><figcaption></figcaption></figure>

### <mark style="color:red;">3. Self Service Package Delivery​</mark> <a href="#id-3-self-service-package-delivery" id="id-3-self-service-package-delivery"></a>

* **Command Name:** Self Service Package Delivery
* **Source State:** Ready for Customer Pickup
* **Destination State:** Delivered
* **Command Code:** `SELF_SERVICE_PACKAGE_DELIVERY_COMMAND`
* **Visibility:** OMS WEB, INSTORE
* **Configuration:** {}

**Procedure:**

* When the customer arrives to pick up the package, the store staff locates the package in the OMS/Instore application.
* Execute this command and request the OTP from the customer.

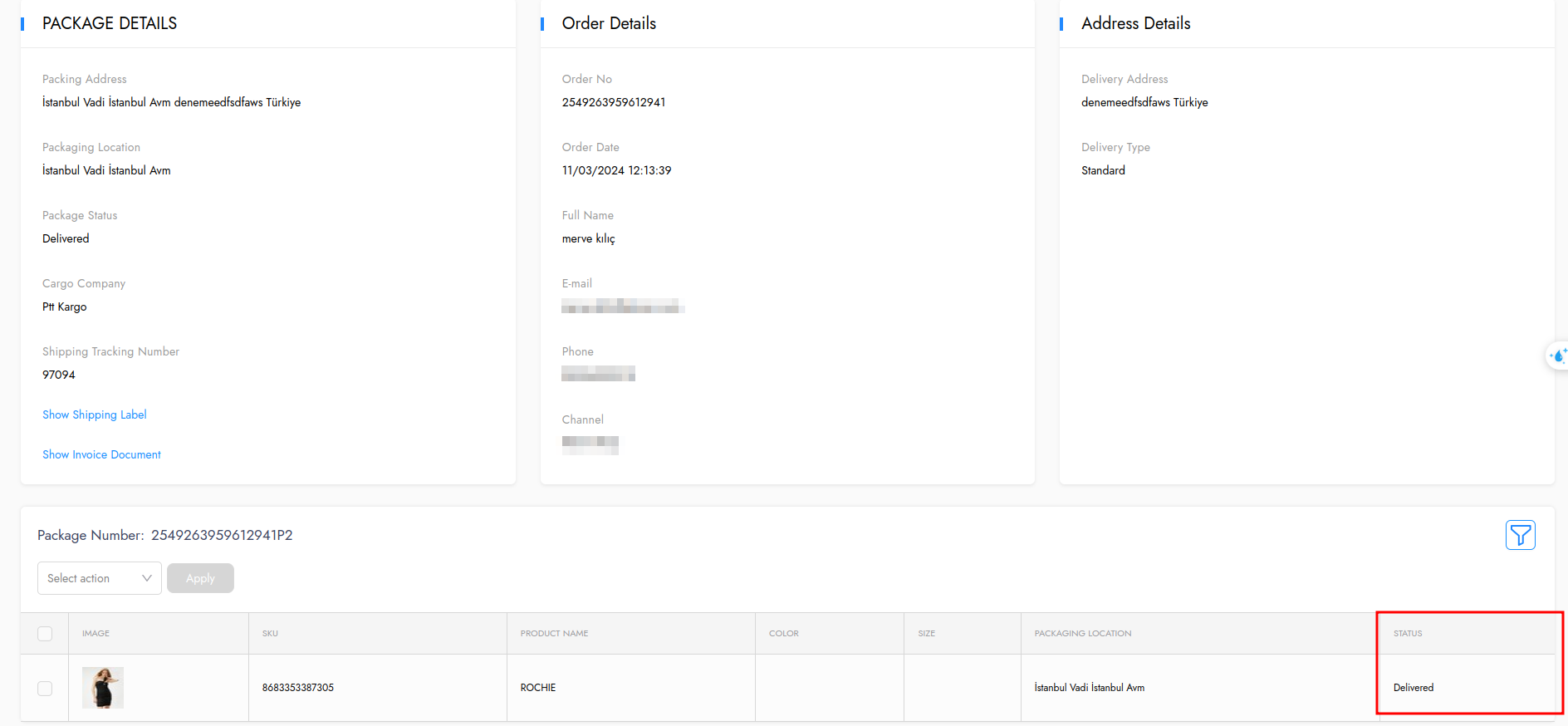

* Enter the provided OTP. If it matches the OTP generated for the package, the package status will be updated to **Delivered**, completing the process.
* If the OTP is incorrect, an error message will be displayed, and the package status will remain as **Ready for Customer Pickup**.

<figure><img src="/files/TJF67GOg1bzErctNwglL" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/Wah4DnpZQsbPRouWtUCV" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/mU5TR5TuOlkH5oNnwn49" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/HIolrdTyOTk3czSMYBKT" alt=""><figcaption></figcaption></figure>

## <mark style="color:red;">Error Handling​</mark> <a href="#error-handling" id="error-handling"></a>

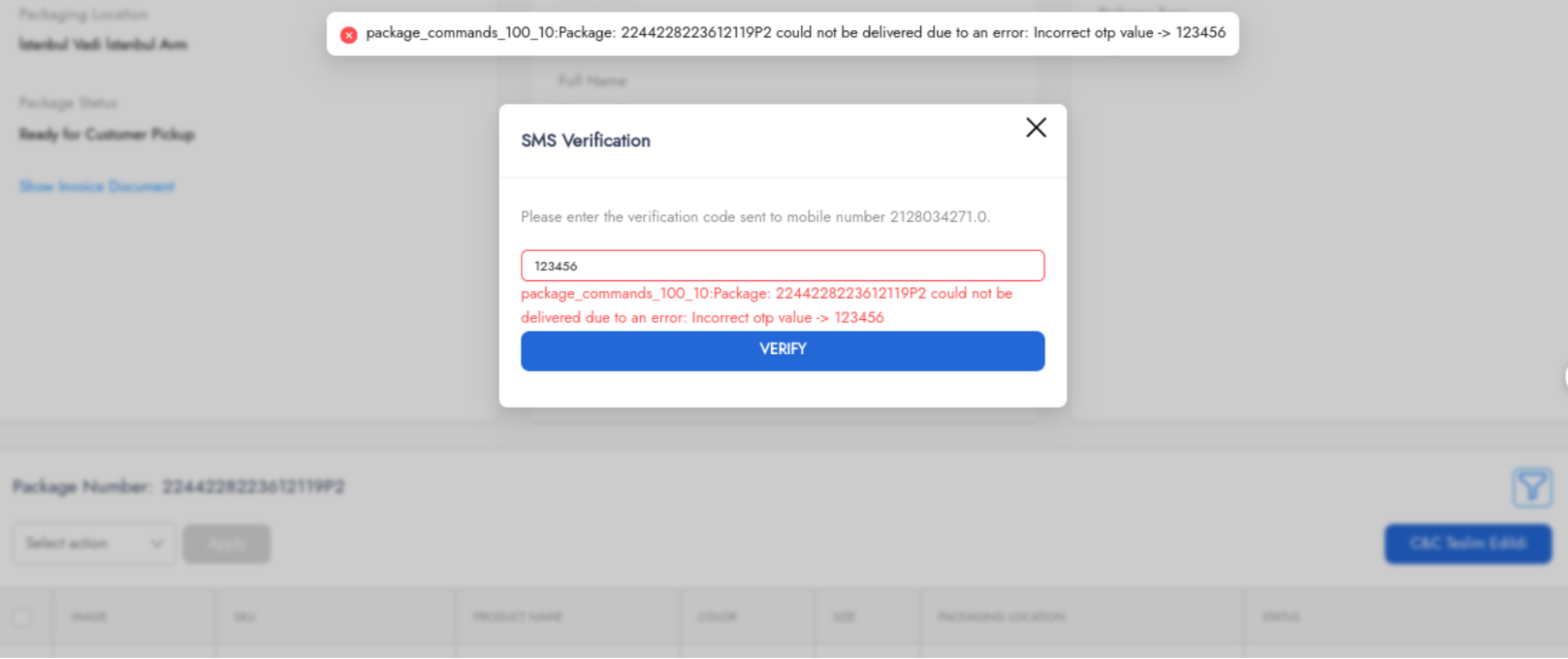

### <mark style="color:red;">Incorrect OTP​</mark> <a href="#incorrect-otp" id="incorrect-otp"></a>

* **Issue:** If the OTP provided by the customer does not match the generated OTP, an error message will be displayed.
* **Resolution:** The package status will remain as **Ready for Customer Pickup**, and the customer will need to retry with the correct OTP.

<figure><img src="/files/7yKikJZqmzlW4Mrrg8oA" alt=""><figcaption></figcaption></figure>


---
