Nearby Store Integration and Configuration

If a brand has multiple sales locations and product stock or price information varies by location, the brand must register all stores in Omnitron and add segments in Omnitron accordingly. To enable selection of a store based on the customer’s location and to display products available in that store to the customer, a service can be implemented on the extension side. Since such services require access to store data in the extension, a hook must be added in Omnitron for store data synchronization.

Extension Implementation Steps

1. Store Data Synchronization

Stores added or updated in Omnitron must be reflected in the extension. Therefore, the extension must have a model, view, and serializer for store data. The model should include all store data needed by the extension.

Key fields relevant for segment and nearby store assignment are:

• erp_code

• latitude

• longitude

• is_active

• country

If different settings exist for stores (e.g., some stores sell products from other stores), a config field (as JsonField) can be added to the model. This config data can be used in nearest store operations when necessary.

a. Delivery Areas per Delivery Method

If the brand uses multiple delivery methods (e.g., schedule, quick) and delivery areas differ per method, the model should include separate polygon data lists for each delivery method (e.g., schedule_boundary, quick_boundary).

To indicate if a delivery method is active for a store, add boolean fields (e.g., is_scheduled_active, is_quick_active). Since these fields do not exist in Omnitron by default, they can be initialized as empty lists or False.

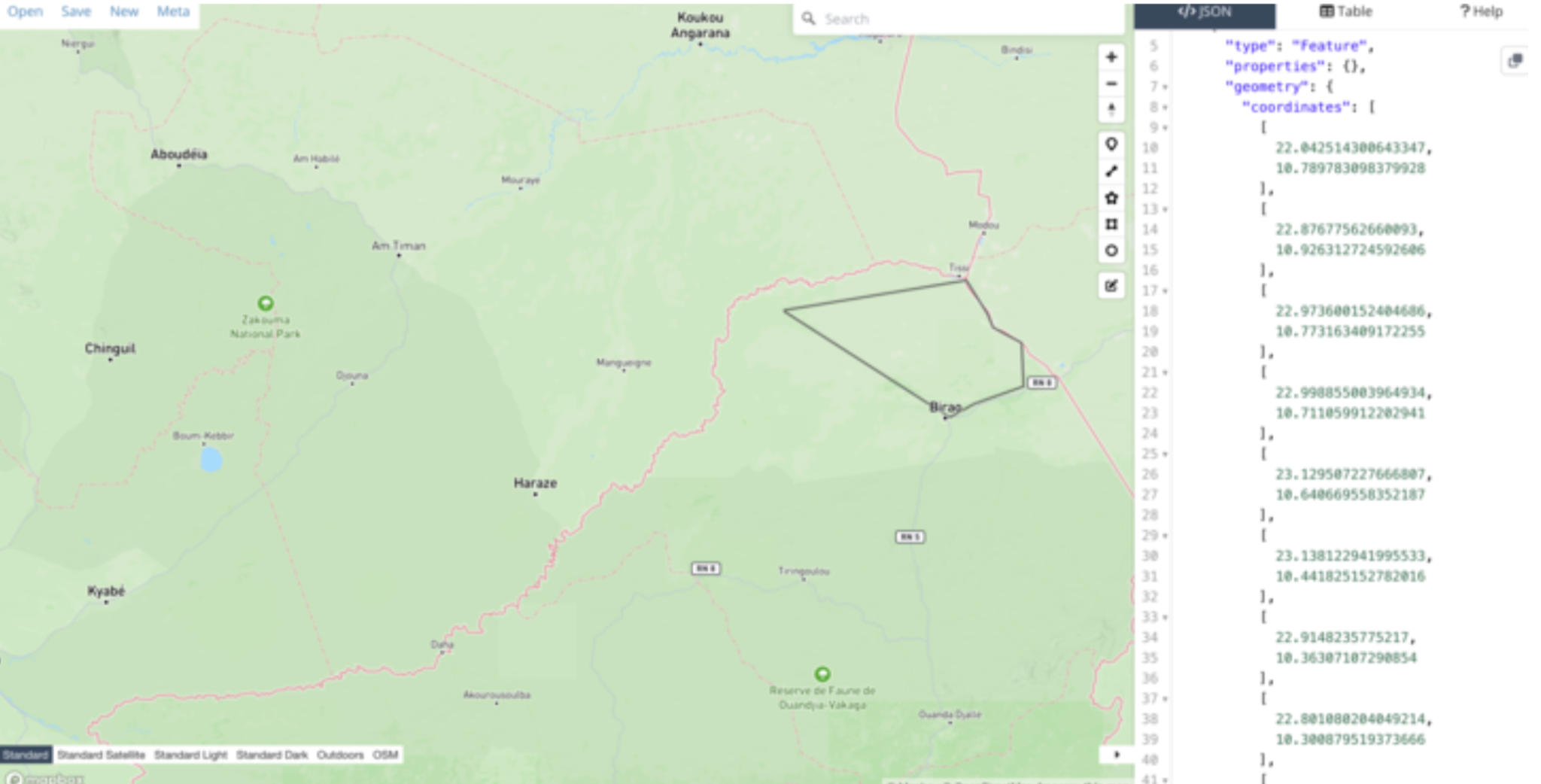

• If the brand defines an area by latitude and longitude polygons, the Shapely library can be used. Shapely can create Point objects for customer locations and Polygon shapes for store boundaries. Polygon data can be created or edited at https://geojson.io. Example:



b. Radius-Based Delivery Areas

If delivery areas are defined by a radius around store coordinates per delivery method, the model should include radius fields (e.g., scheduled_radius, quick_radius). These can have default values since they do not exist in Omnitron.

Alternatively, if radius values differ by delivery type rather than by store, these can be stored in environment variables instead of the model.

• If no polygon data is defined but delivery should cover addresses within a radius from store coordinates, Redis GeoSearch can be used. Newly added or updated stores should be saved both to the model and to Redis Geo with the store name as the member identifier.

2. Delivery Types and Coverage Areas

Since delivery types accepted by stores and their coverage areas or radius information is not managed in Omnitron, these fields must be added manually. Thus, the store view in the extension must be accessible and editable.

3. Service for Finding Store by Customer Location

A service must be added in the extension to find the appropriate store for a customer’s order based on their location.

a. Polygon-Based Store Selection

If the store’s delivery coverage areas are defined by polygons, Shapely can be used to create a Point from the customer’s location. Active stores in the extension store table are checked to see if the customer point is inside the polygon corresponding to the delivery method (schedule_boundary, quick_boundary, etc.). If the point is inside the polygon and the delivery type is active, the store, delivery type, and store code are included in the response.

The same store may not serve all delivery types in the same location, so including delivery type in the response is important.

If no nearby store is found, default stores with currency and polygon coordinates can be included in the environment variables.

b. Radius-Based Store Selection

If coverage areas are defined by radius, Redis GeoSearch can be used with store data previously added to Redis. The service queries Redis with the customer’s latitude, longitude, and the radius to find suitable stores.

• If multiple stores are found within the radius and the closest store should be selected, the WITHDIST parameter should be set to True in the Redis query. This returns the distance between each store and the customer, allowing selection of the nearest store.

• If the brand operates in multiple countries, stores located in a different country than the customer’s should be excluded. Store filtering must be done by country or currency to ensure a store in the customer's country is selected. Store filtering steps:

  • Filter active extension stores by country or currency.

  • If store data lacks currency, country-to-currency mapping defined in environment variables can be used to infer country.

• If multiple delivery methods exist, filtering and queries should be run separately for each delivery type. Stores must be returned with associated delivery types in the response.

Omnitron Implementation Steps

1. Store Hooks

To ensure store additions and updates in Omnitron are reflected in the extension, hooks must be added. POST requests must be sent to the endpoint: {{omnitron_base_url}}api/v1/whisperer/hooks/with event_type set to retail_store.created and retail_store.updated.

• For retail_store.created, the target_url should point to the extension’s store creation service URL.

• Include authentication info for the extension in the hook configuration.

2. Creating Stores in Omnitron

Navigate to: Sales Channels > Store Management > Stores

Use the +New Store button to add a store with fields:

• Store Name,

• ERP Code,

• Country,

• City,

• Township,

• Address,

• Phone,

• Latitude,

• Longitude,

• Status,

• Delivery from Store,

• Channel.

For detailed information, refer to the How to Manage Stores in Omnitron? document.

3. Creating Price Lists in Omnitron

Navigate to: Products and Catalogs > Price Lists

Use + New Price List and enter:

• Price List Name,

• ERP Connection status (select ERP Connection Available if prices are not loaded via Excel),

• ERP Code, and

• Currency (if applicable).

For detailed information, refer to the How to Create and Update Price Lists in Omnitron? document.

4. Creating Stock Lists in Omnitron

Navigate to: Products and Catalogs > Stock Lists

Use New Stock List and enter:

• Stock List Name,

• ERP Connection status, and

• ERP Code (if applicable).

For detailed information, refer to the How to Create and Update Stock Lists in Omnitron? document.

5. Assigning Price and Stock Lists to Catalogs

Navigate to: Products and Catalogs > Catalogs

Select the catalog to assign price and stock lists.

• Add price lists via Add Price List if they are primary or exclusive for that catalog.

• Add additional price lists under Extra Price Lists if they apply only to certain stores.

• Add stock lists similarly.

For detailed information, refer to the How to Manage Catalogs in Omnitron? document.

6. Adding Segments for Store Product Visibility

Navigate to: Sales Channels > Customer Groups > Customer Groups Settings

Create a new segment via New Customer Groups Settings.

Define rules in the config field using currency and store info to filter products by store.

7. If the Brand Uses OMS

Stores added in Omnitron are automatically reflected in OMS Locations. However, to activate a newly added store, you must go to Akinon OMS > Locations, find the store, and set its status to "Active."

Check the scenarios defined in Akinon OMS > Scenarios for the newly added store.

8. If the Brand Uses Whippy

When a brand uses Whippy for stock management, you must configure the new store in Whippy by adding the required stock-related records. If Whippy is being used for the first time, a Stock Provider must also be created.

a. Add a Stock Provider (if using Whippy for the first time):

Go to the Stock Providers page in the Whippy interface and click Add New Provider to create a new provider.

b. Add a Stock Location:

Navigate to the Stock Locations page and click Add New Location. Make sure to link the location to the previously created Stock Provider.

c. Define Stock List Rules:

To control which stores can see stock from the new store (and vice versa), go to the Stock List Rules page and click Add New Rule.

If the new store will also feed stock to existing stores, make sure to update existing rules accordingly.

In the ss_locations field of the rule, list all store locations that should supply stock to the newly added store.

d. Create a Stock List:

Go to the Stock Lists page and click Add New Stock List.

When creating the list, the Remote ID must match the stock list ID from Omnitron.

You must also select the Stock List Rule that was created for the new store.

For detailed information, refer to the Whippy Ware tutorial.

9. If the Brand Uses Integrator

If the brand uses an Integrator, a price and stock flow must be added in the Integrator to allow data transmission for the newly added store's stock and price lists.

If a single flow is used for all stock and price lists, the existing flow should be reviewed and updated if necessary to include the new stock and price list information.

a. Creating a Price Flow:

1. - In the Integrator interface, select the relevant project and navigate to Integration Flows. - Click Create a New Flow and select Price as the Flow Type. - Choose the login that corresponds to the system where price data is fetched. If no login exists yet, you must first create a Login Flow. - Then, set the schedule interval for how frequently the flow should run.

2. - Once the flow is created, click the edit (pencil) icon next to the flow name in the Integration Flows list to configure it. - In the Configuration tab, enter the Omnitron Price List ID. - Under Omnitron API Settings, enter the Omnitron URL and Timezone. Click Save to proceed.

3. - In the Read Data from ERP step, provide the necessary parameters for retrieving price data. - For example, in the Lulu setup, price data is fetched from an extension, so you must enter the ERP Code of the store under ERP Param Settings > Extra Params. - In the Price API URL field, enter the ERP's price API endpoint. - Optionally, fill in Pagination Settings. - Specify the response path for the price data in the Response Settings > Path for data in response as array path. Click Save to continue.

4. If any validation or transformation is needed for the price data other than renaming keys, add a script.

5. In the Mapping step, match the fields from the ERP to the expected Omnitron fields. In the mapping, the price_list field must be mapped to the newly created price list ID in Omnitron. Click Save to finish.

6. After completing all steps, activate the flow from the Status field on the Integration Flows page so that it can begin fetching data.

b. Creating a Stock Flow:

1. - In the integrator interface, select the relevant project and navigate to Integration Flows. - Click Create a New Flow and select Stock as the Flow Type. - Choose the login corresponding to the source system of stock data. - For example, if stock is fetched from Whippy, use the Omnitron Login. If no login exists, create a Login Flow first. - Set the schedule for how often the flow should run.

2. - Once the flow is created, click the edit (pencil) icon to configure it. - In the Configuration tab, enter the Omnitron Stock List ID. - Fill in the Omnitron URL and Timezone under Omnitron API Settings, and click Save to proceed.

3. - In the Read Data from ERP step, configure how the stock data will be retrieved. - In the case of Lulu, stock data is pulled from Whippy, so the Endpoint URL should be: whippy_url/active-stocks/{stock_list_omnitron_id}/ - Fill in Pagination Settings if necessary. - Define the data path in the Response Settings > Path for data in response as array path. Click Save to continue.

4. If any custom logic or data transformation is needed beyond key names, add a script at this step.

5. In the Mapping step, map the ERP fields to the expected Omnitron fields. For the stock_list field, assign the newly created stock list ID from Omnitron. Click Save to complete the mapping.

6. Activate the flow via the Status column on the Integration Flows page to enable data fetching.

10. Final Configuration in Extension

Once all data has been pushed to Omnitron, validate the store data in the extension.

If the store data is correct but certain required data is missing in Omnitron (e.g., polygons for delivery zones, active delivery types, delivery radius, configuration settings, etc.), these should be patched via a PATCH request to the extension store data.
